Eco-effective cooling: a step forward in sustainable refrigeration

Published 12 April, 2024

A recent study has unveiled a significant advancement in refrigeration technology. This work introduces an optimized Compression-Absorption Cascade Refrigeration Cycle (CACRC) that remarkably reduces electricity consumption and capitalizes on waste heat, setting new benchmarks in refrigeration efficiency and sustainability.

The Compression-Absorption Cascade Refrigeration Cycle (CACRC) system, merging Vapor-Compression Refrigeration (VCR) with Absorption Refrigeration Cycle (ARC), presents a promising answer to the pressing energy demands and environmental concerns associated with traditional cooling methods. While the VCR is celebrated for its superior performance and ability to achieve low temperatures at a high energy cost, the ARC, in contrast, operates with minimal electricity, utilizing waste heat. This harmonious combination has generated keen interest in CACRC, recognizing its potential utility in critical areas such as food preservation and district cooling.

Recently, researchers from Xi'an Jiaotong University have fine-tuned the CACRC. Their detailed study (DOI: 10.1016/j.enss.2024.02.003) was published in Energy Storage and Saving in February 2024, highlighting the integration of vapor-compression and absorption refrigeration cycles. This blend achieves considerable reductions in electricity use while efficiently leveraging waste heat.

 Exploring a dual-section mechanism that combines vapor-compression with absorption refrigeration technologies, the research team conducted a thorough analysis of 16 distinct refrigerants in the vapor compression section, paired with H2O-LiBr in the absorption section. This meticulous examination aimed to identify the most efficient and eco-friendly combinations, revealing the RE170/H2O-LiBr pair as the standout performer. This pair demonstrated the highest coefficient of performance and exergy efficiency among all candidates. Further investigation into the system's dynamics, including the impacts of generator and evaporator temperatures, cascade temperature differences, and the effectiveness of the solution heat exchanger, enriched the study's findings.

Xiaopo Wang, the study's lead author, noted, "This breakthrough not only marks a significant step towards more sustainable refrigeration practices but also reflects our dedication to pioneering solutions that can revolutionize industries and contribute to the preservation of our planet's resources."

The culmination of this research offers a solid foundation for a refrigeration system that not only drastically reduces electricity consumption by harnessing waste heat but also advocates for a sustainable cooling approach across various industries, including food preservation and district cooling. This study heralds the dawn of a new era in refrigeration technology, emphasizing the critical balance between environmental stewardship and economic feasibility.



Reference

Title of the original paper



Energy, exergy, and economic analysis of compression-absorption cascade refrigeration cycle using different working fluids



Journal

Energy Storage and Saving

Energy Storage and Saving (ENSS) is an interdisciplinary, open access journal that disseminates original research articles in the field of energy storage and energy saving. The aim of ENSS is to present new research results that are focused on promoting sustainable energy utilisation, improving energy efficiency, and achieving energy conservation and pollution reduction.



DOI

10.1016/j.enss.2024.02.003

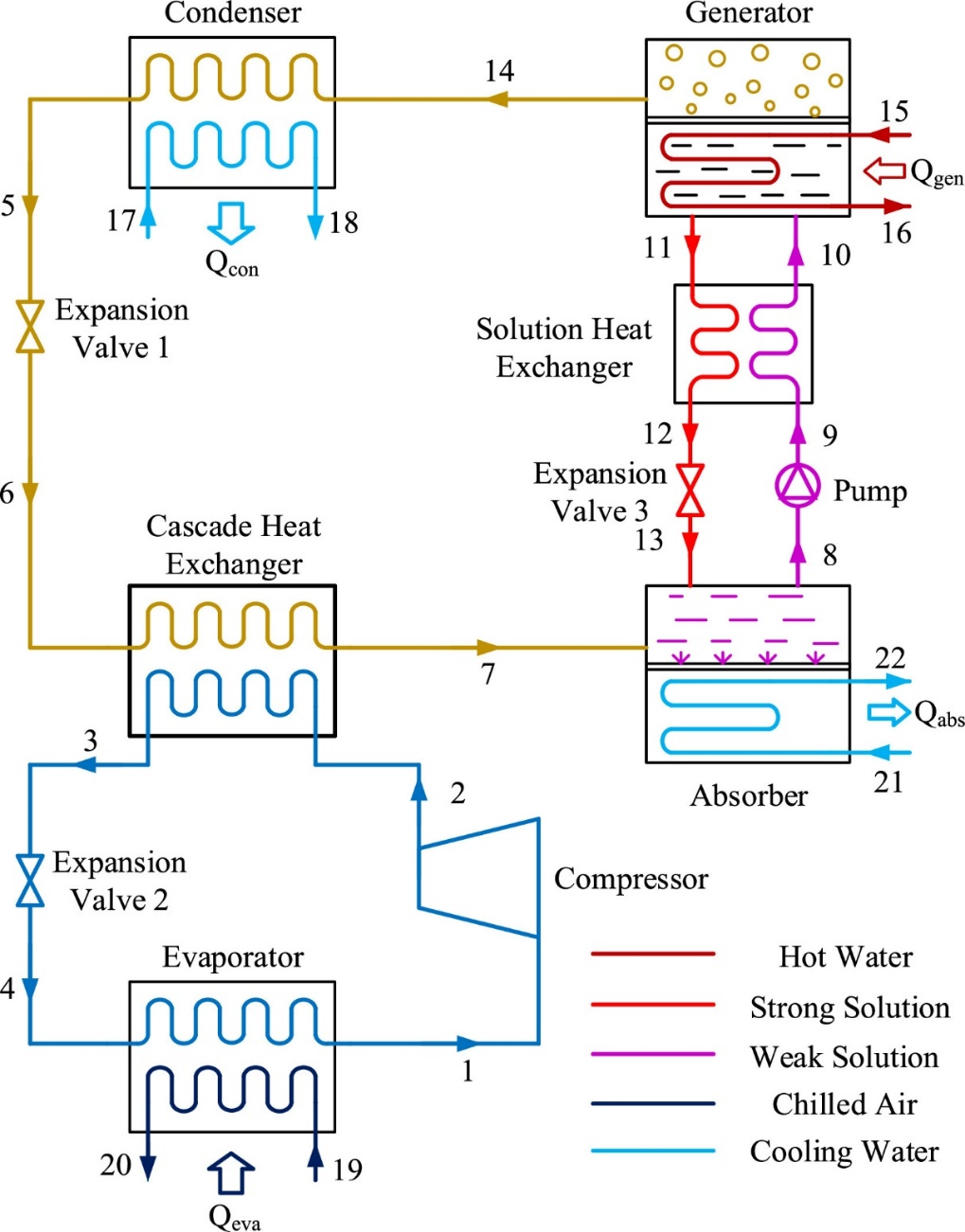

Image title: Schematic diagram of the CACRC system.

Image link: https://ars.els-cdn.com/content/image/1-s2.0-S2772683524000049-gr1_lrg.jpg

Image credit: The authors

License type: CC BY-NC-ND 4.0

Funding information:

This work was supported by the National Natural Science Foundation of China (Grant No. 51936009).
